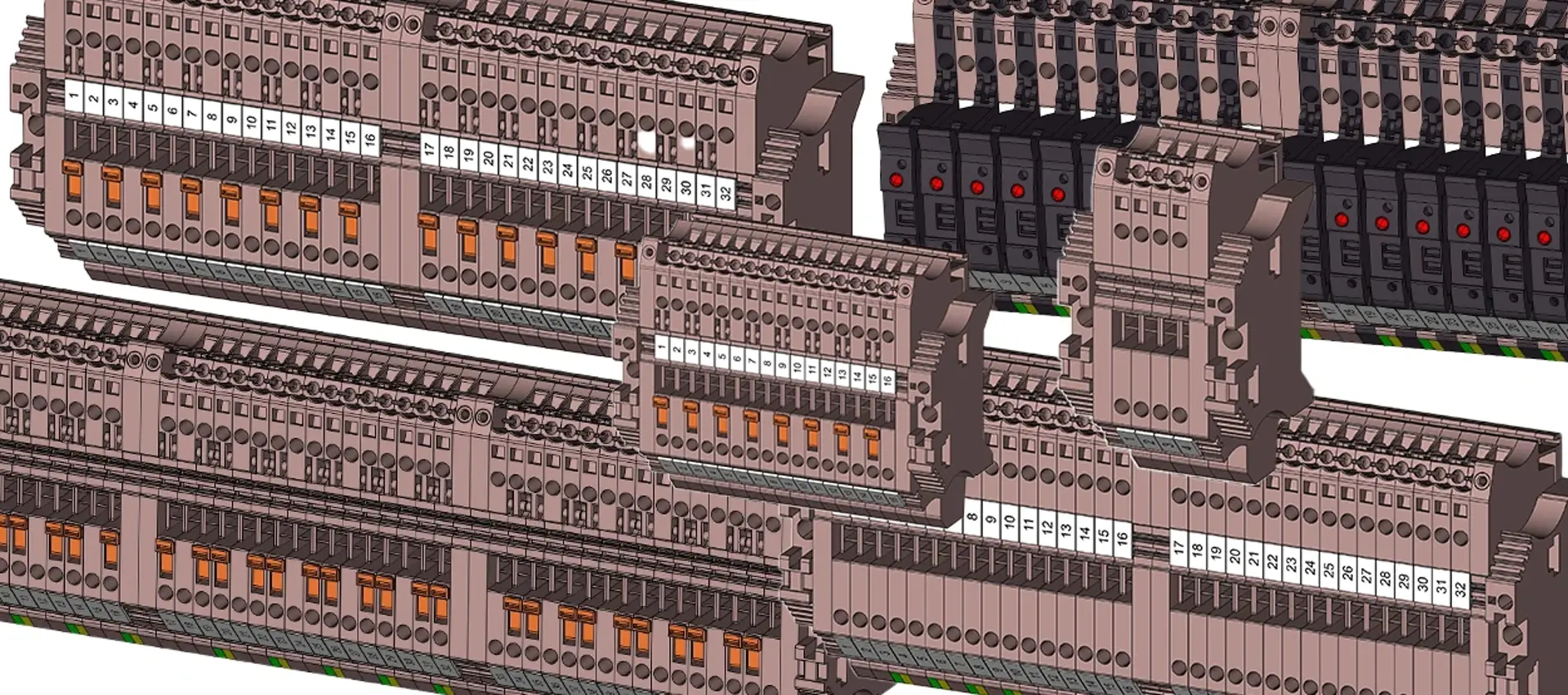

For ease of use and flexibility, nothing beats terminal blocks. Weidmuller has created a selection of pre-bundled kits using the industry leading multi-function terminal block line, the WMF.
The kits include:
• 4, 8, 16, 32 channel versions
• Pluggable and screw connections
• Integrated ground (PE)
• Versions with or without test points
• Versions with or without disconnect

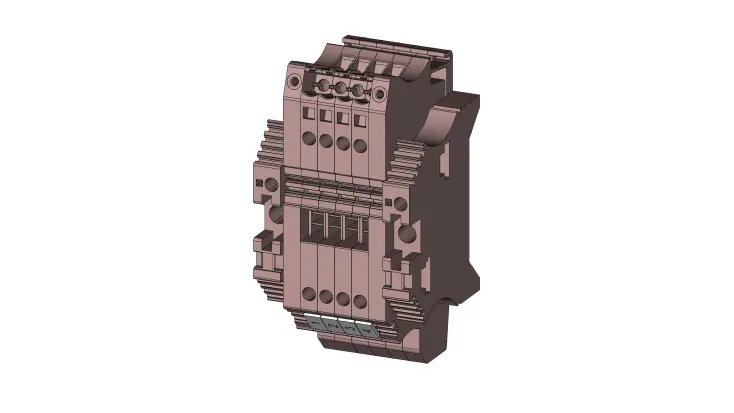

4 point (2 channel) assembly with 4-WMF 2.5 BLZ terminals, 2-WBB WMF 2.5 BLZ locking brackets, 2-WEW 35/2WM BG end brackets, and Dekafix markers. This is a screw and pluggable assembly without PE rail connection and without disconnects.

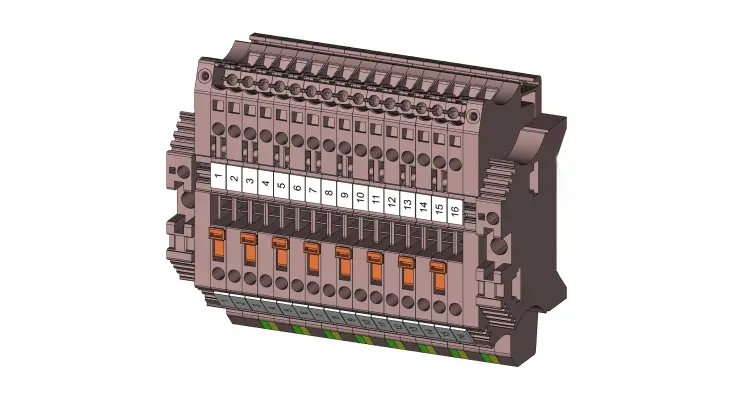

16 point (8 channel) assembly with 8-WMF 2.5 PE terminals, 8-WMF DI terminals, 2-WEW 35/2 WM G end brackets and Dekafix markers. This is a screw only (non-pluggable) assembly with PE rail connections and disconnects on each channel.
16 point (8 channel) assembly with 8-WMF 2.5 BLZ PE terminals, 8-WMF DI BLZ terminals, 2-WBB WMF 2.5 BLZ locking brackets, 2-WEW 35/2 WM G end brackets and Dekafix markers. This is a screw and pluggable assembly with PE rail connections and disconnects on each channel.
16 point (8 channel) assembly with 8-WMF 2.5 BLZ terminals, 8-WMF DI BLZ terminals, 2-WBB WMF 2.5 BLZ locking brackets, 2-WEW 35/2 WM G end brackets and Dekafix markers. This is a screw and pluggable assembly with disconnects on each channel without PE rail connections.
32 point (16 channel) assembly with 16-WMF 2.5 terminals, 16-WMF DI terminals, 2-WBB WMF 2.5 locking brackets, 2-WEW 35/2 WM G end brackets and Dekafix markers. This is a screw and pluggable assembly with disconnects on each channel without PE rail connections.

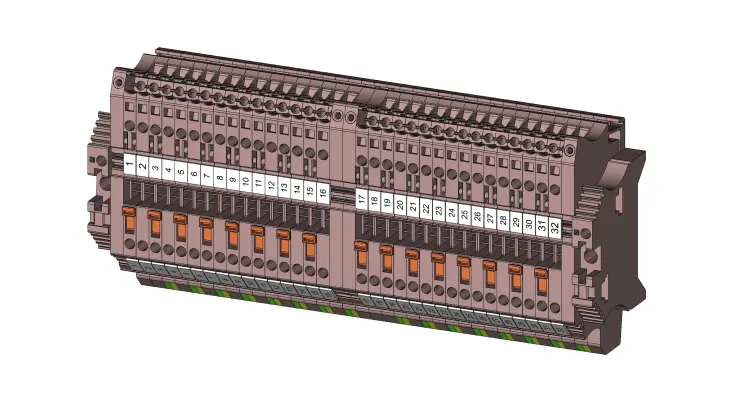

32 point (16 channel) assembly with 16-WMF 2.5 BLZ PE terminals, 16-WMF DI BLZ terminals, 4-WBB WMF 2.5 BLZ locking brackets, 2-WEW 35/2 WM G end brackets and Dekafix markers. This is a screw and pluggable assembly with PE rail connections and disconnects on each channel.
32 point (16 channel) assembly with 16-WMF 2.5 BLZ PE terminals, 16-WMF BLZ terminals, 4-WBB WMF 2.5 BLZ locking brackets, 2-WEW 35/2 WM G end brackets and Dekafix markers. This is a screw and pluggable assembly with PE rail connections without disconnects.
32 point (16 channel) assembly with 16-WMF 2.5 BLZ PE terminals, 16-WMF DI BLZ terminals, 4-WBB WMF 2.5 BLZ locking brackets, 2-WEW 35/2 WM G end brackets and Dekafix markers. This is a screw and pluggable assembly with disconnects on each channel without PE rail connections.

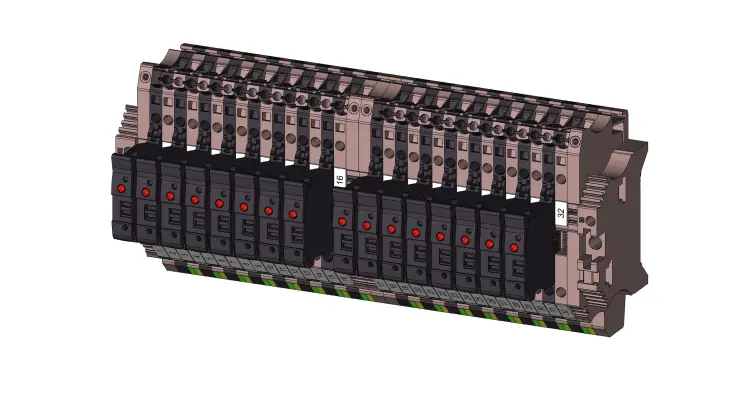

48 point (16 channel) assembly with 32-WMF 2.5 DI BLZ, 16-WMF 2.5 BLZ PE terminals, 8-WBB WMF 2.5 BLZ locking brackets, 2-WEW 35/2 WM G end brackets and Dekafix markers. This is a screw and pluggable assembly with disconnects on each channel with PE rail connections.
