Weidmuller’s range of industrial, DIN-rail mounted circuit breakers are part of our broad electronics portfolio, which provides isolation and protection solutions for automation control systems.
Product Overview
Model QL
AC Branch-rated circuit breakers
UL489 Listed, CSA, VDE, CE conformity
1, 2 and 3 pole units
Ratings up to 240V/25A
Model QY
DC Branch-rated circuit breakers
UL489A Listed, VDE, CE conformity
1 and 2 pole units
Ratings up to 125V/60A
9926 Series Branch Circuit Breakers (AC)
Circuit Breakers Hydraulic Magnetic Type
1, 2 and 3 pole versions
120/240 VAC, 50/60 Hz
Up to 25A
Just 13 mm wide, per pole
Mounts on 35mm DIN-rail
cULus listed according to UL489CSA C22.2 No. 5.02, CE, VDE
Product Features

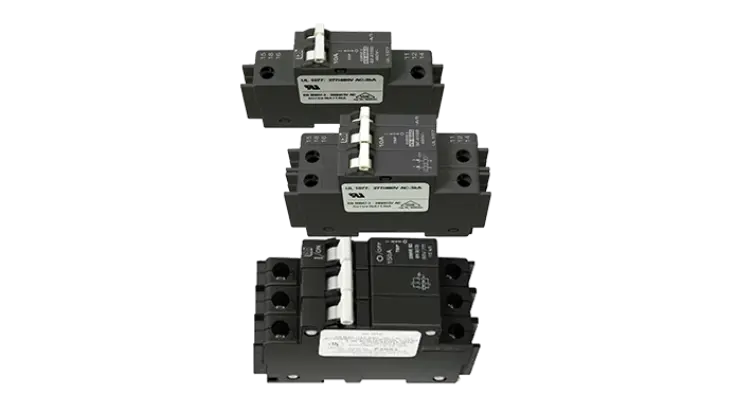

9926 Series Circuit Breakers
For industrial AC and DC installations
Models either for branch applications cULus (UL489/CSA C22.2 No 5.02) approvals or supplemental
cURus/ UL1077 approved /CSA C22.2 No. 235.

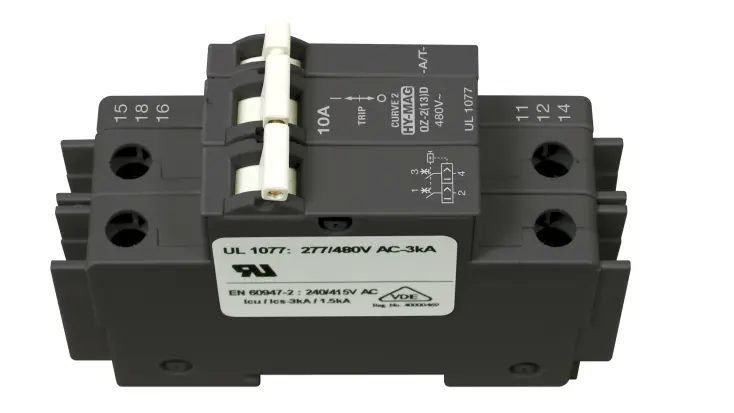

Single and multi-pole models, with auxiliary/trip options
Trip point unaffected by ambient temperature changes
Variety of trip characteristics available, to suit equipment protected
