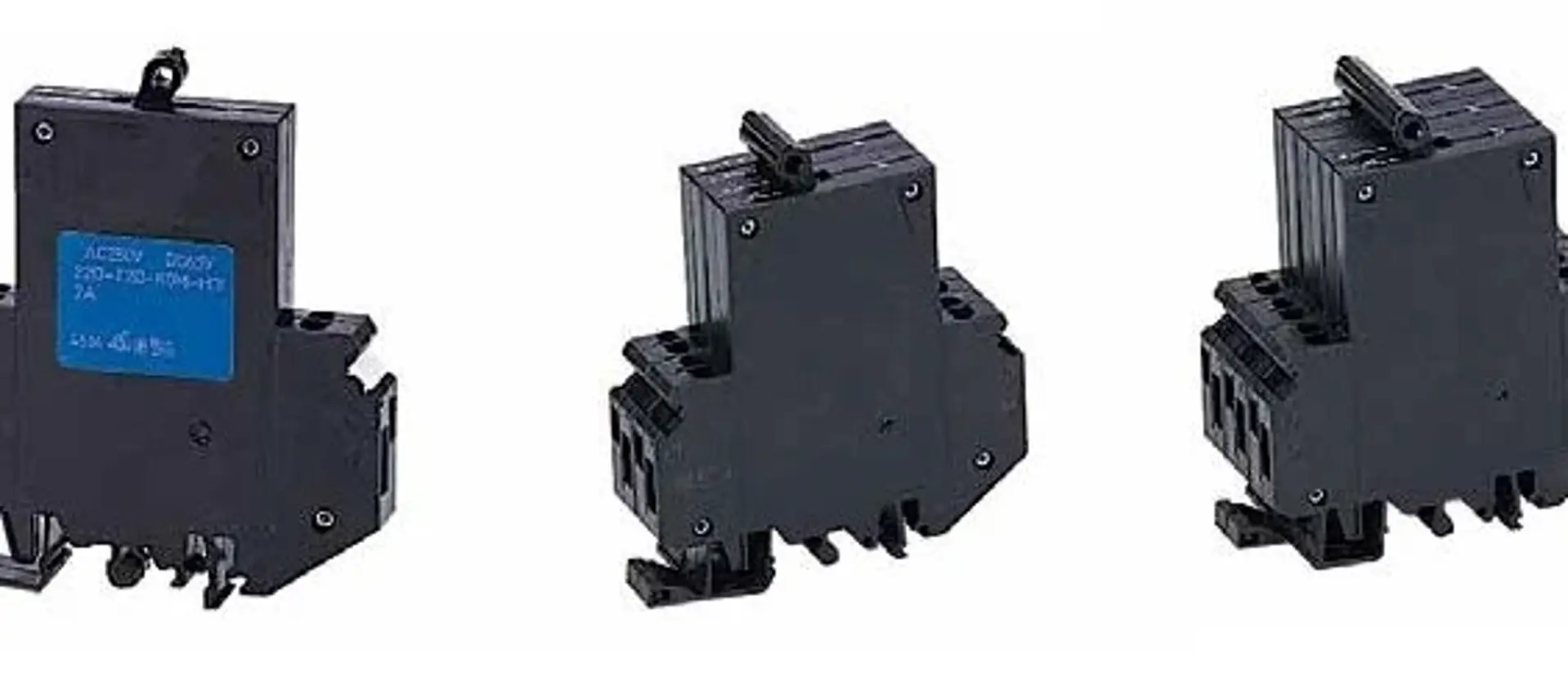

CB2200 Series Supplementary Circuit Breakers

Thermal Magnetic Type Circuit Protection

CB2200 Series Supplementary Circuit Breakers

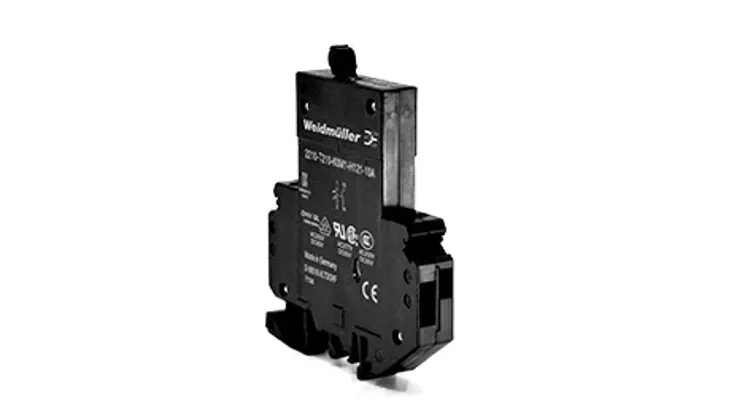

Product Overview

The CB2200 Series feature integrated alarm contacts within a narrow profile, thereby allowing increased enclosure capacity. All of these circuit breakers demonstrate consistent reliability through 100% calibration and testing, and feature a touch safe design to prevent injury from accidental contact with live components.

Product advantages

Circuit Breakers Thermal Magnetic Type

  • Rated from 0.1 to 32.0 amps
  • Available in single, double and triple pole configurations
  • Offers normally open (N/O) and normally closed (N/C) auxiliary contacts
  • Lever-switch trip/reset function
  • Mounts on 32mm or 35mm DIN-rail
  • UL 1077 recognized
  • CSA C22.2 No. 235
